Tipo |
Modelo de riel guía aplicable | Φ | A | B | C | E | F | G | H | K | L | M | T |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
|
±1.3 |
±1.3 |
±1.3 | +2.5/0 | ±1.5 | ±0.8 | ±1.0 | ±0.5 | ±0.8 | ±1.0 | ±0.5 | |||
|
T1 |
T45/A, T50/A |
M10 |
32 |
22 |
15 | 19 | 25 | 3.5 | 12 | 2 | 5 | 11 |
3 |
|
T2 |
T70-1/B, T75-3/B, T78/B |
M12 |
39 |
26 |
19 |
22 | 30 | 4.3 | 15 | 3 | 6.5 | 13 |
4 |
|
T3 |
T82/B, T89/B, T90/B |
M14 |
45 |
29 |
21 | 28 | 38 | 5.5 | 18.5 | 4 | 8 | 13 |
4 |
|
T4 |
T114/B, T127-1/B, T127-2/B |
M16 |
50 |
34 | 22 | 34 | 44 | 6.5 | 20.5 | 4 | 8.5 | 15 |
5 |
| T5 | T140-1/B, T140-2/B |
M18 |
55 |
37 | 23 | 35 | 46 | 9 | 23 | 4 | 11 | 17 |
5 |

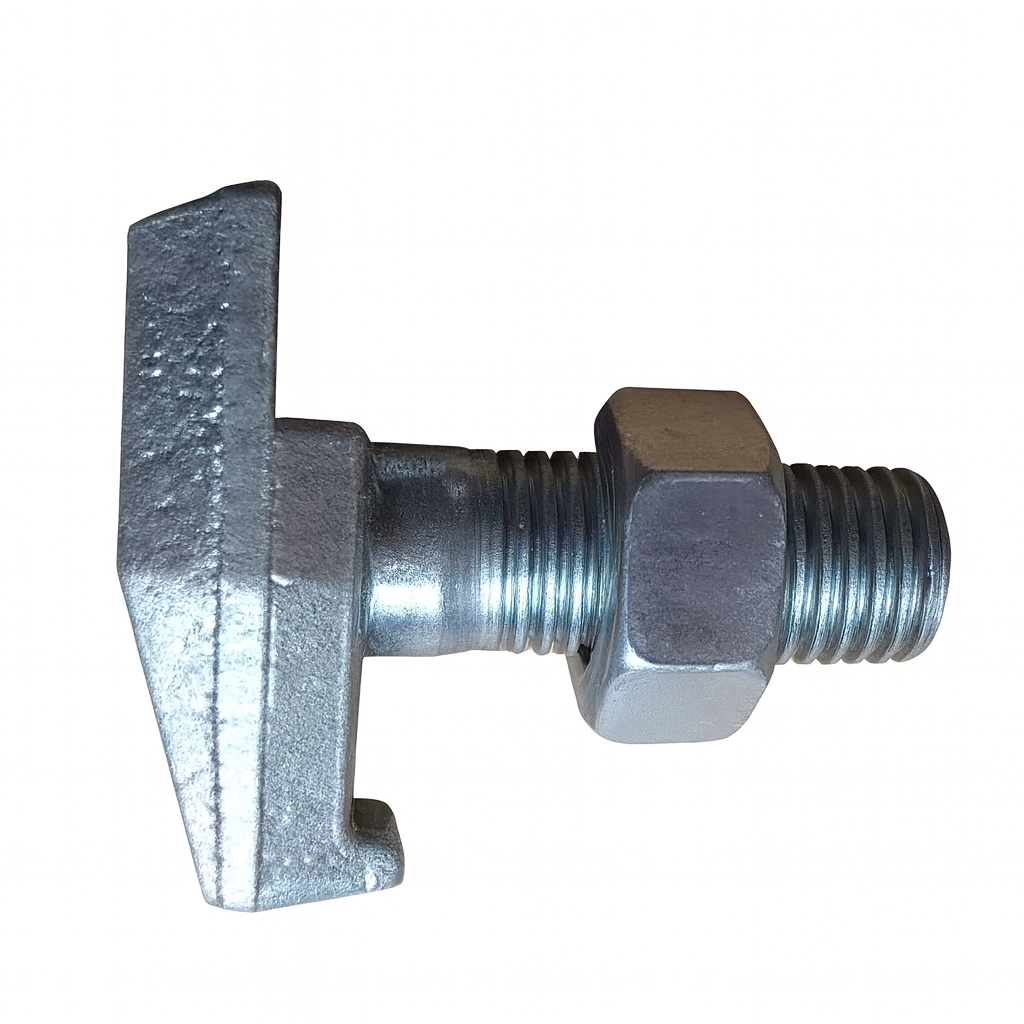

Nota: Los clips forjados tipo T se fabrican exactamente de acuerdo con el diseño del cliente y son adecuados para rieles T45/A a T140, etc. Cada juego completo de clips tipo T incluye cuatro piezas: perno en T, tuerca, arandela simple y arandela de seguridad, y sus opciones de acabado incluyen liso (color propio), galvanizado o galvanizado. La rosca del producto se puede ofrecer en UNC, UNF o métrica.
| Tipo | Designación | Dimensiones(mm) | |||||||||
| A | B | C | D | E | F | G | M | Φ | Tornillo | ||
| NV75 | T75-3/B | 30 | 15 | 15 | 30 | 10.5 | 15 | 4.5 | 3 | 9 | M8 |
| NV89 | T89/B | 32 | 16 | 16 | 38 | 11 | 16 | 5 | 6 | 13 | M12 |
| NV90 | T90/B | 32 | 16 | 16 | 38 | 11 | 16 | 5 | 6 | 13 | M12 |
| NV114 | T114/B | 50 | 22 | 28 | 50 | 14 | 22 | 5 | 7.5 | 17 | M16 |
| NV1271 | T127-1/B | 50 | 22 | 28 | 50 | 14 | 22 | 5 | 7.5 | 17 | M16 |
| NV1272 | T127-2/B | 50 | 22 | 28 | 50 | 17 | 25 | 8 | 8 | 17 | M16 |
| NV1401 | T140-1/B | 50 | 22 | 28 | 50 | 17 | 25 | 8 | 8 | 17 | M16 |
| NV1402 | T140-2/B | 70 | 38 | 32 | 65 | 16 | 25.5 | 12.5 | 24 | 20.5 | M18 |
| NV1403 | T140-3/B | 70 | 38 | 32 | 76 | 19 | 28.5 | 19 | 24 | 20.5 | M18 |
| Tipo | Designación | Dimensiones(mm) | |||||||||
| A | B | C | D | E | F | G | – | Φ | Tornillo | ||
| NV-SL1 | T89/B | 76 | 70 | 31 | 5 | 9 | 14.5 | 18.5 | – | 13 | M12 |
| T90/B | 76 | 70 | 31 | 5 | 9 | 14.5 | 18.5 | – | 13 | M12 | |
| NV-SL2 | T114/B | 76 | 70 | 31 | 5 | 9 | 14.5 | 18.5 | – | 17.5 | M16 |
| T127-1/B | 76 | 70 | 31 | 5 | 9 | 14.5 | 18.5 | – | 17.5 | M16 | |
| NV-SL3 | T127-2/B | 76 | 70 | 33 | 5 | 14.5 | 20.5 | 19 | – | 17.5 | M16 |
| T140-1/B | 76 | 70 | 33 | 5 | 14.5 | 20.5 | 19 | – | 17.5 | M16 | |
| T140-2/B | 76 | 70 | 33 | 5 | 14.5 | 20.5 | 19 | – | 17.5 | M16 | |
