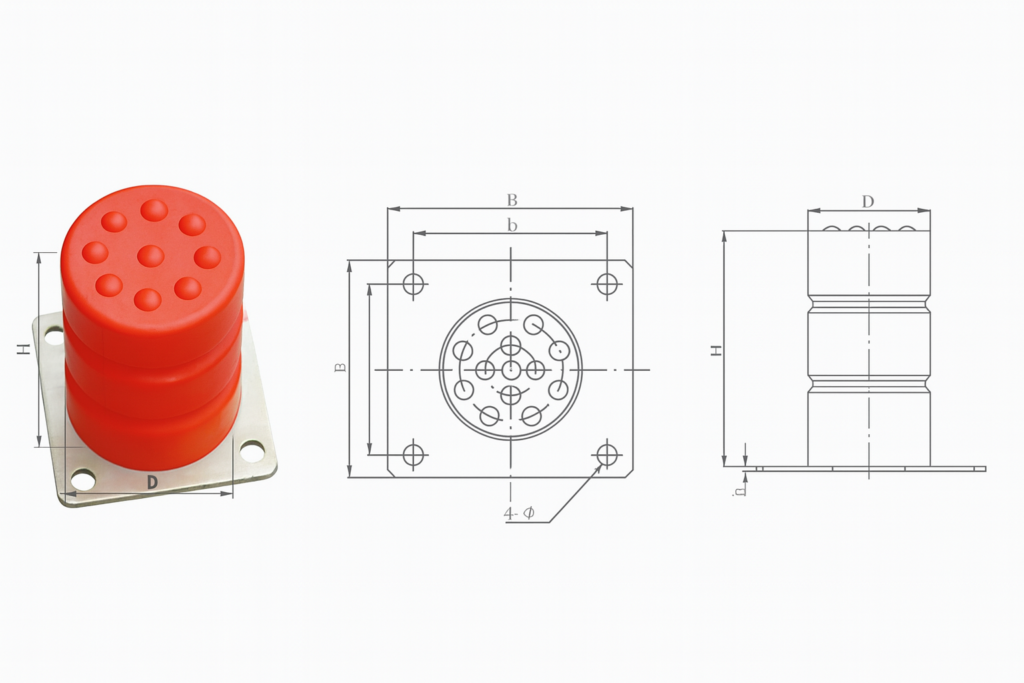

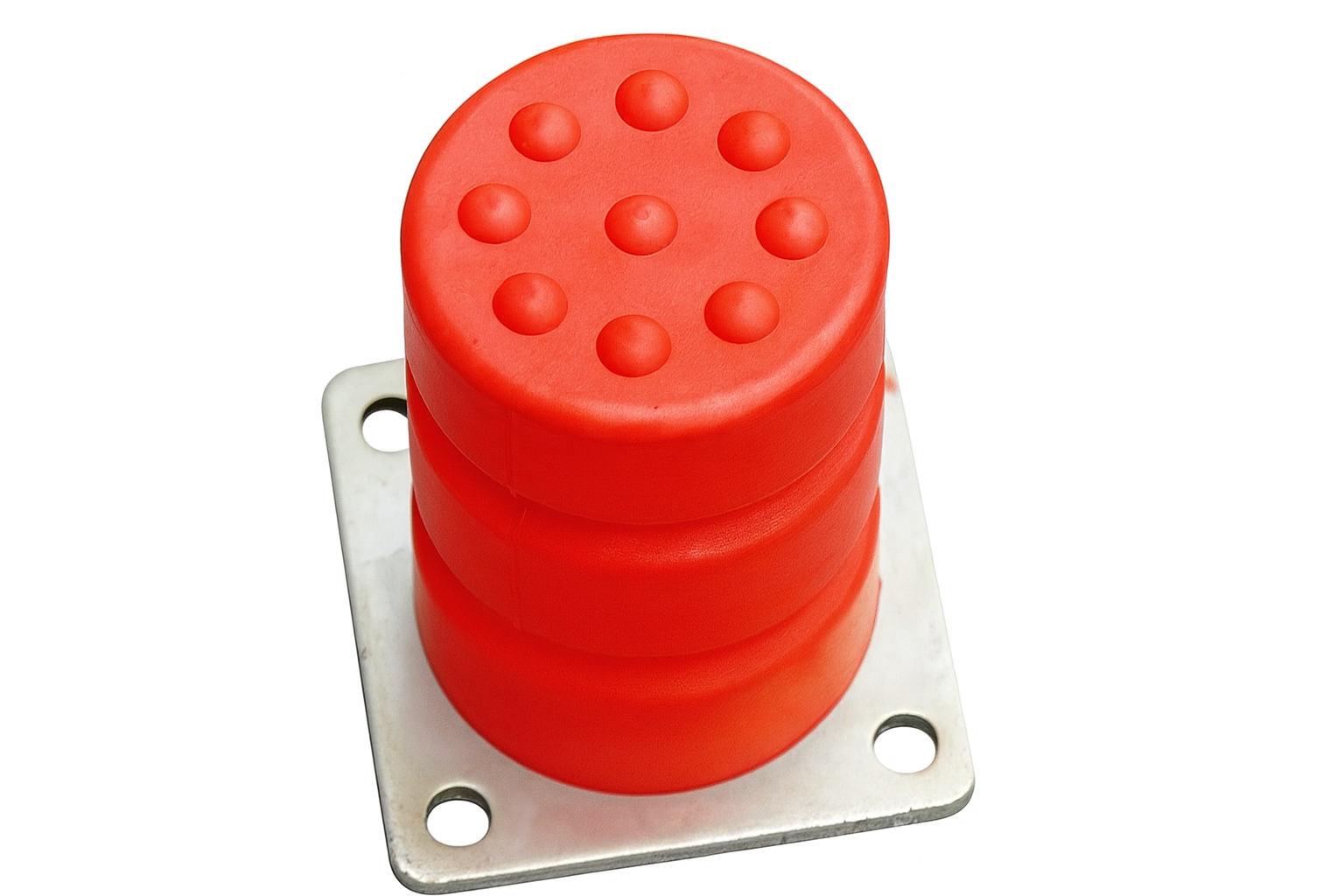

| Modelo | Carrera de compresión máxima (mm) | Especificación (ΦD×H) | Capacidad de carga P+Q(kg) | Dimensiones de montaje | Velocidad nominal | |||
| B | b | yo | ∮ | ≤1,0 m/s | ||||
| NV54-A-01 | 70 | Φ65×80 | 200 ~ 1200 | 95 | 65 | 4 | 12 | ≤1,0 m/s |
| NV54-A-06 | 88 | Φ100×100 | 500 ~ 2200 | 128 | 96 | 4 | 14 | ≤1,0 m/s |
| NV54-A-07 | 108 | Φ100×120 | 500 ~ 2500 | 128 | 96 | 4 | 14 | ≤1,0 m/s |
| NV54-A-08 | 144 | Φ100×160 | 500 ~ 3000 | 128 | 96 | 4 | 14 | ≤1,0 m/s |
| NV54-A-09 | 177 | Φ100×200 | 500 ~ 2600 | 128 | 96 | 4 | 14 | ≤1,0 m/s |
| NV54-A-17 | 185 | Φ160×200 | 1800 ~ 5800 | 200 | 156 | 4 | 14 | ≤1,0 m/s |

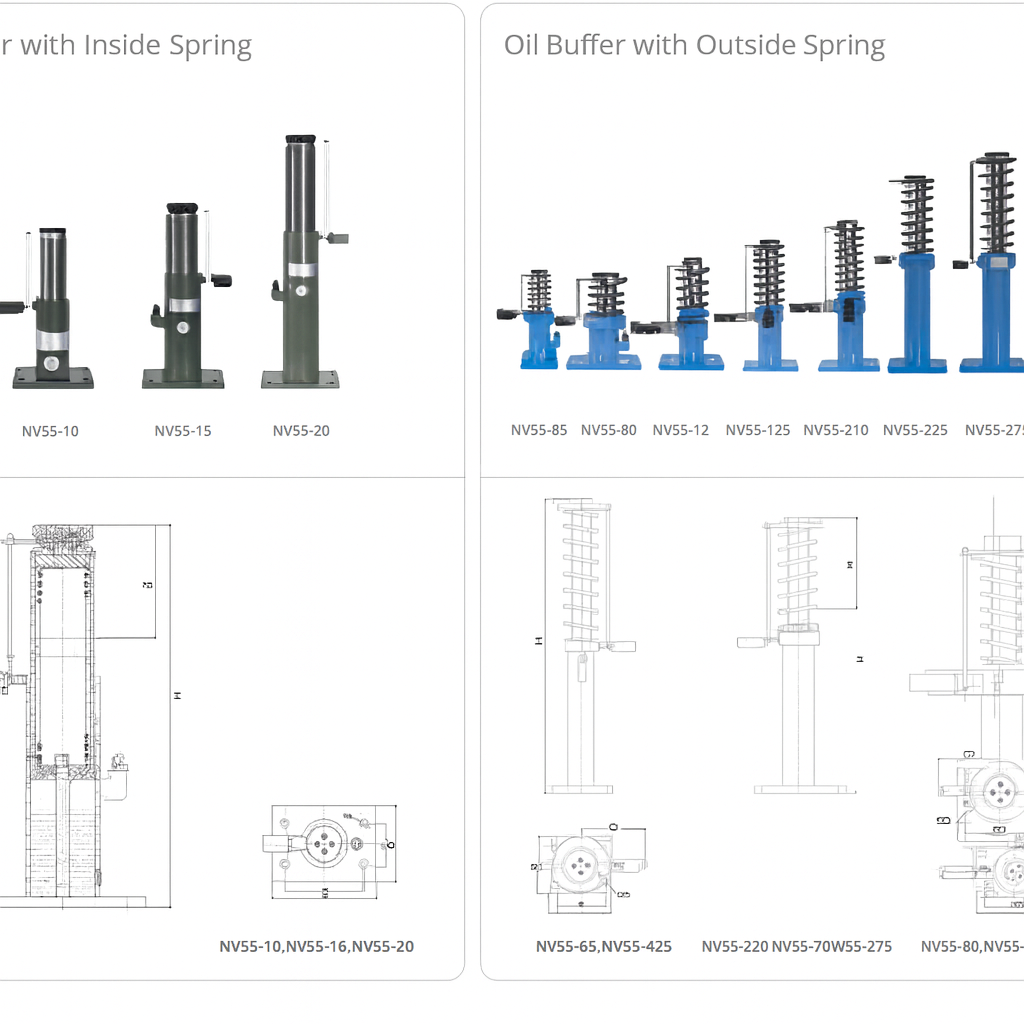

| Código Nova | Velocidad nominal | P+Q | Carrera del émbolo | Altura libre | un*b | A*B | Masa de aceite |
| (EM) | (Kg) | (mm) | (mm) | (mm) | (mm) | (L) | |
| NV55-10 | ≤1.0 | 300-2500 | 100 | 390 | 150*90 | 180*125 | 0,5 |
| NV55-16 | ≤1,6 | 700-5300 | 175 | 625 | 210*100 | 270*150 | 1.7 |
| NV55-20 | ≤2,0 | 1000-5300 | 290 | 915 | 210*100 | 270*125 | 2.6 |
| NV55-65 | ≤0,63 | 500-4600 | 65 | 355 | 150*100 | 190*150 | 0,45 |
| NV55-70 | ≤1.0 | 300-2500 | 70 | 305 | 210*80 | 250*125 | 0,5 |
